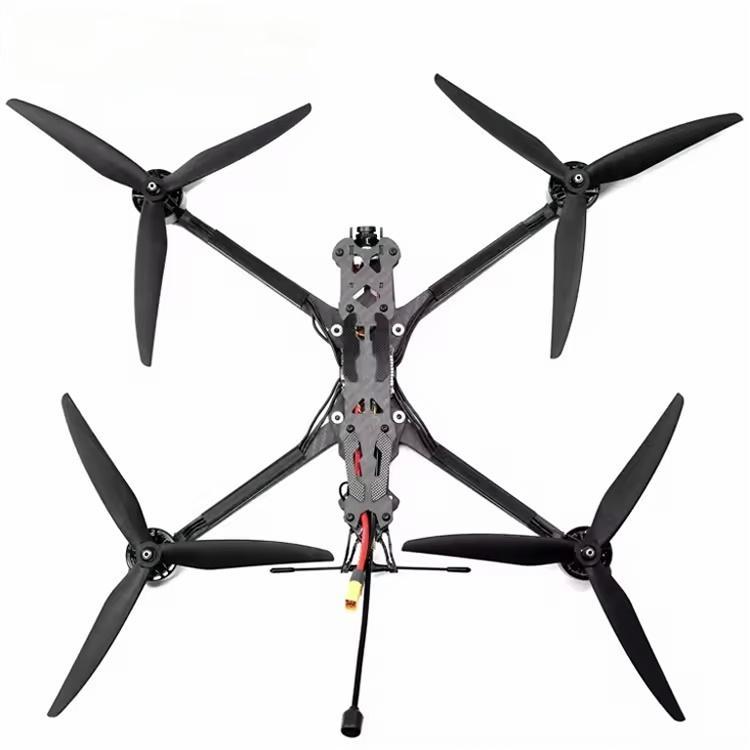

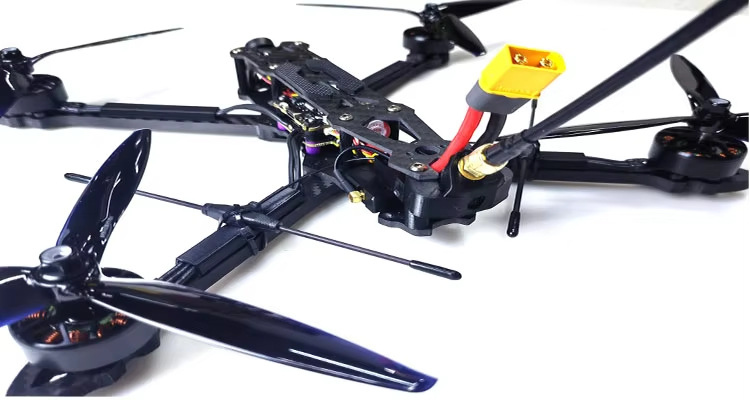

More Details of 7 Inch FPV Drones

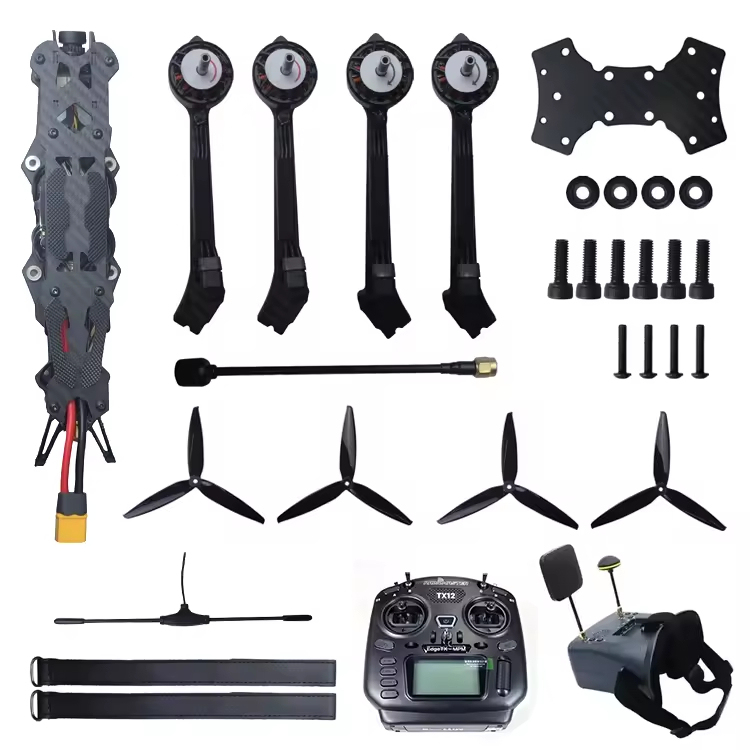

Demountable Arm with Motors, which is for safe shipment and a Small Packing VolumeThe arms with the motor for FPV Drones are demountable. It only needs to install 8PCS Scews when installing the FPV Drones. In that case, we can ship the FPV drones by parts for safe shipment. In the meantime, the packing volume is smaller when shipped by parts. In that case, we have helped our client save a lot of shipping costs.

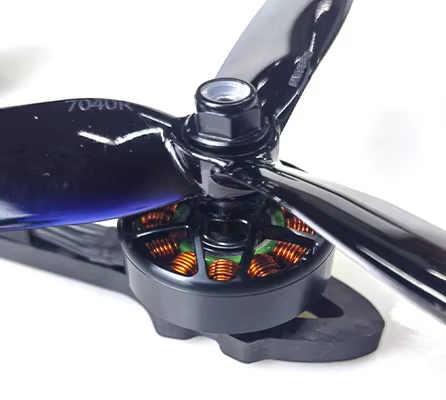

DV07 MOTOR & PROPELLER
Model: 2807 -KV1300 *4pcs
Motor Weight: 47.6g Motor Dimension:33.9*34mm
Internal Resistance: 58mΩ Configuration: 12N/14P Shaft
Diameter: 5.0mm
Rated Voltage: 3-6S
Peak Current: 45.79A Max
Power: 1153.9W
Max Pull: 2239g *4pcs
Prop: GF7*3.5*3
No-load current:0.8A/12V
silica gel:18#200mm

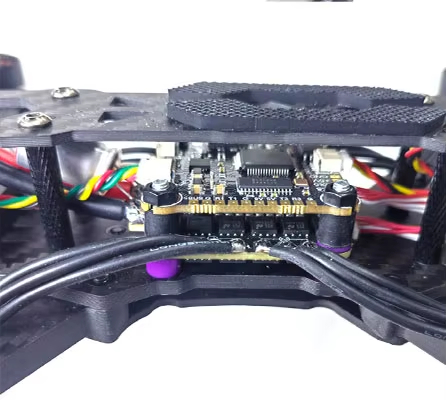

DV07 FC & ESC 4in1 STACK
Model: F405 60A
Stack ESC : F60 Blheli-S 60A -6S 37*42.7mm FC: BL F405 (42688P)37*37mm
Mounting: 30.5*30.5mm
Input: 2-6S Consistent
Current: 60A
BEC: 5V 3A, 10V 2A
Temp Protection: YES
Power Cable: 12AWG, 10cm
Weight: 20.5g
current sensor: YES
motor output:8CH Universal serial port:4CH

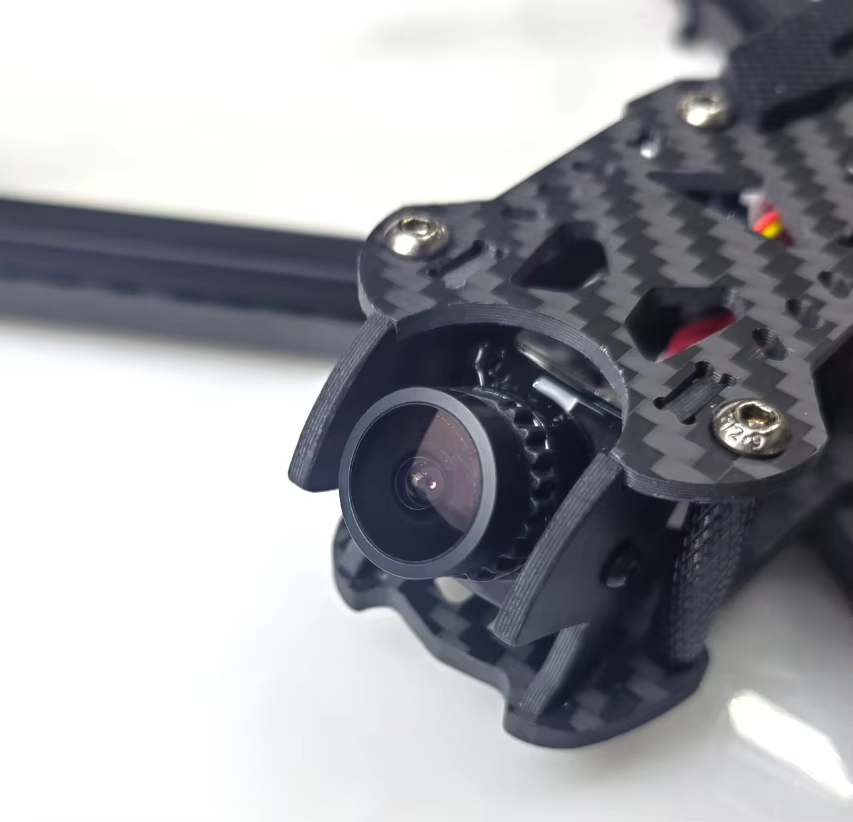

DV07 CAMERA
ITEM: 1800TVL Camera
Sensor: 1/3.cmos
Resolution: 1800TVL
FOV: 165° Lens: 2.1mm
TV System: NTSC & PAL
Image: 4:3/16:9
WDR: Super WDR Min.
Illumination: 0.0001Lux Denoise:3DNR
Video output: CVBS
ElectronicShutter: PAL:1/50~100,000;
NTSC:1/60~100,000
Wide voltage:5-40V Operation temperature:-20℃~+60℃
Weight:5.9g Size:19*19*20mm
Option: Night vision or Thermal Imaging Camera

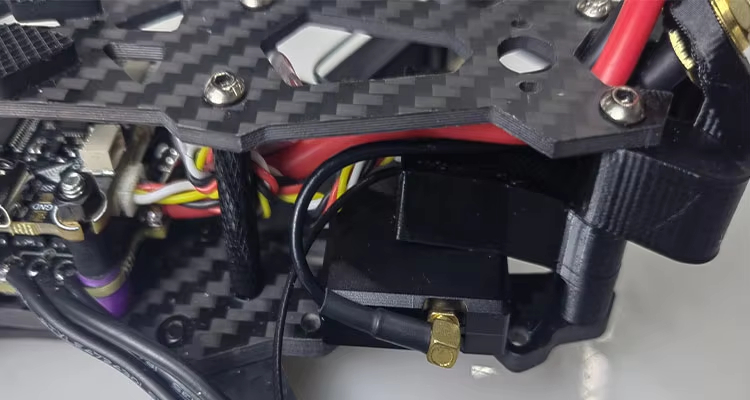

DV07 VIDEO TRANSMITTER
Item: Item: DroView 5.8G 2.5W VTX (1.3G 1.6W VTX Instead of 5.8G Chips short) Working Voltage:7-36V Working Current: ≤450mA (12V/800mW), ≤850mA (12V/2500mW) Video Input Impedance:75Ω Video Format: NTSC/PAL Antenna interface: MMCX 25mW/13.95dBm 500mW/26.02dBm 1000mW/30.3dBm 2500mW/34.04dBm Output Power: PIT/25/500/1000/2500mW Number of Channels: Standard 40 Channels (A/B/E/F/R) Image transmission protocol: SmartAudio Mounting Hole:20X20.M2 Dimension: 25*37*6.5mm Working Temp: -10-60℃ Weight: 19g

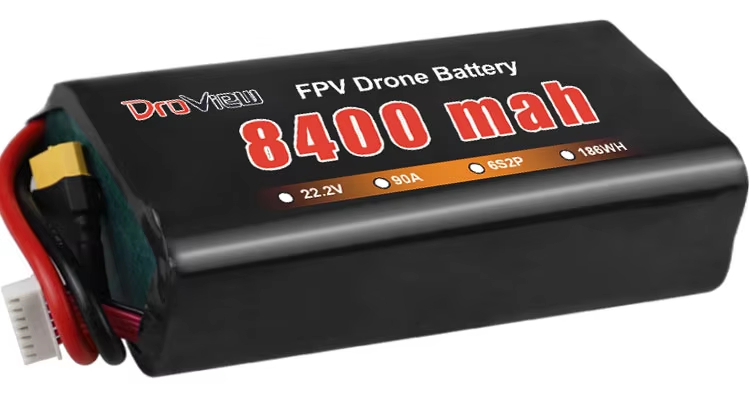

SUGGESTED BATTERY For DV07
Model 1: DroView 6S2P 8400mAh Made by Molicel Cell P42A or P45B Weight: 920g
Model 2: DroView 6S3P 8400mAh Made by Molicel Cell P28A Weight: 900g
Model 3: DroView 6S3P 12000mAh Made by Molicel Cell P42A or P45B Weight: 1250g Battery Connector: XT60
