Mini FPV Stack Tower System Flight Controller Stack 4in1 for Micro FPV Racing Quadcopter
Place of Origin: Guangdong, China Model Number: Emax F3 Product Name: Emax F3 Magnum Mini FPV Stack Brand Name: EMax Model Number: EMAX186 Software: Betaflight Betaflight OSD: EMaxOSD
Feature highlights The Emax F3 Magnum Mini FPV Stack integrates a powerful STM32F303 MCU, MPU6000 gyro, and BLheli S 12A 4-in-1 ESC for stable, high-performance micro FPV racing. It supports 2-4S batteries, Betaflight OSD for customizable flight data, and includes a built-in buzzer for battery warnings. The stackable design with 20x20mm mounting simplifies assembly and enhances aesthetics.
Product Description

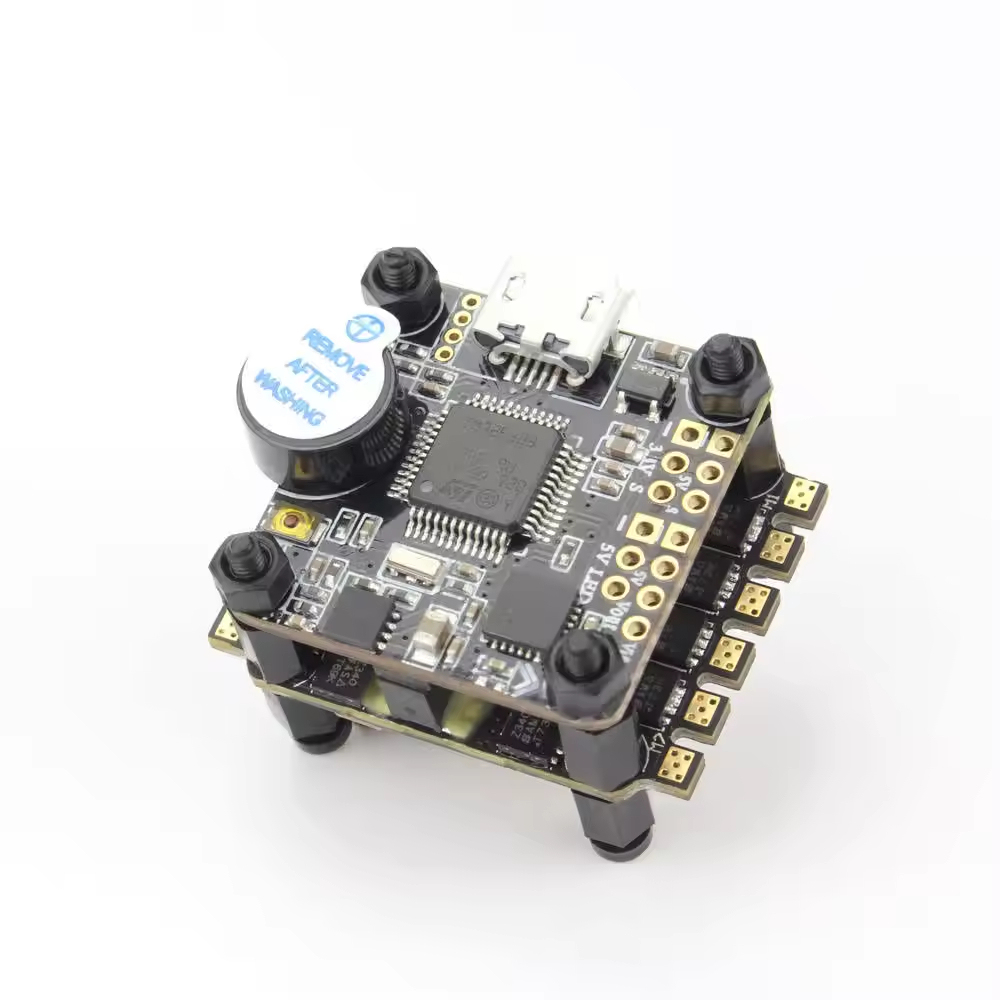

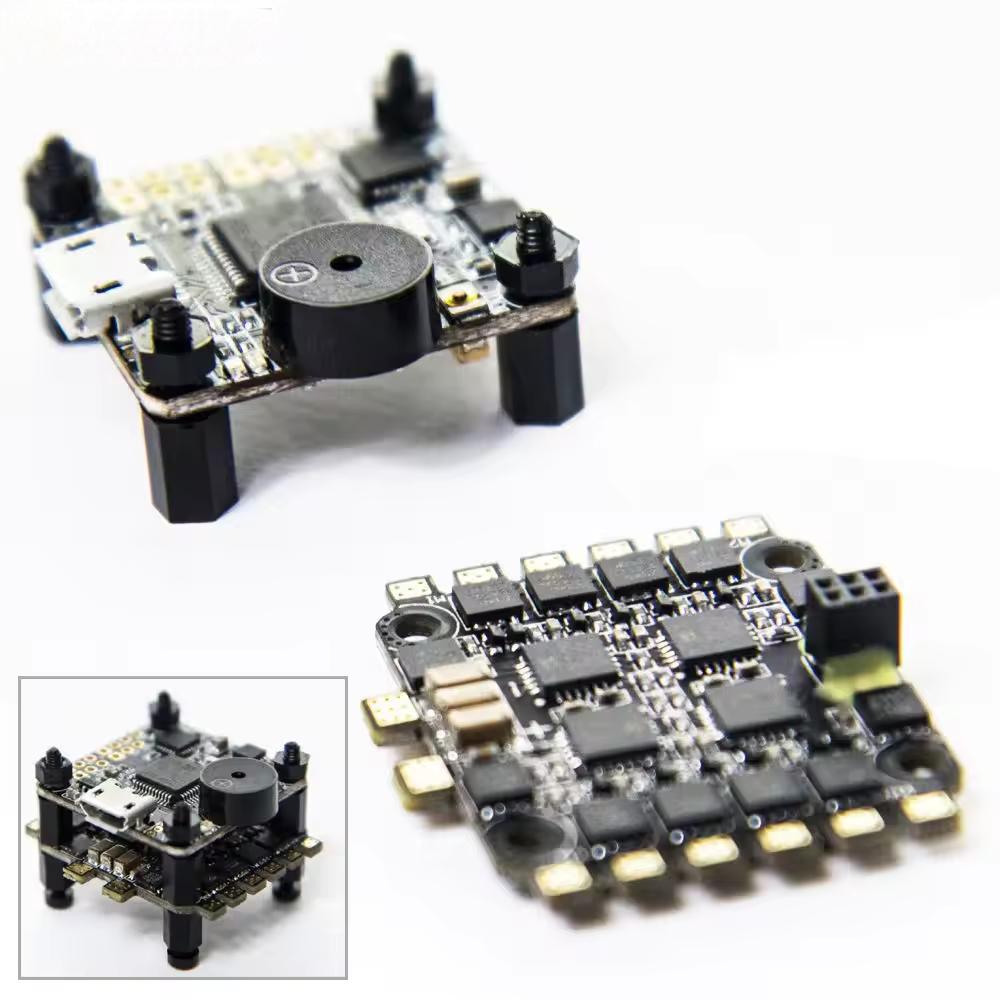

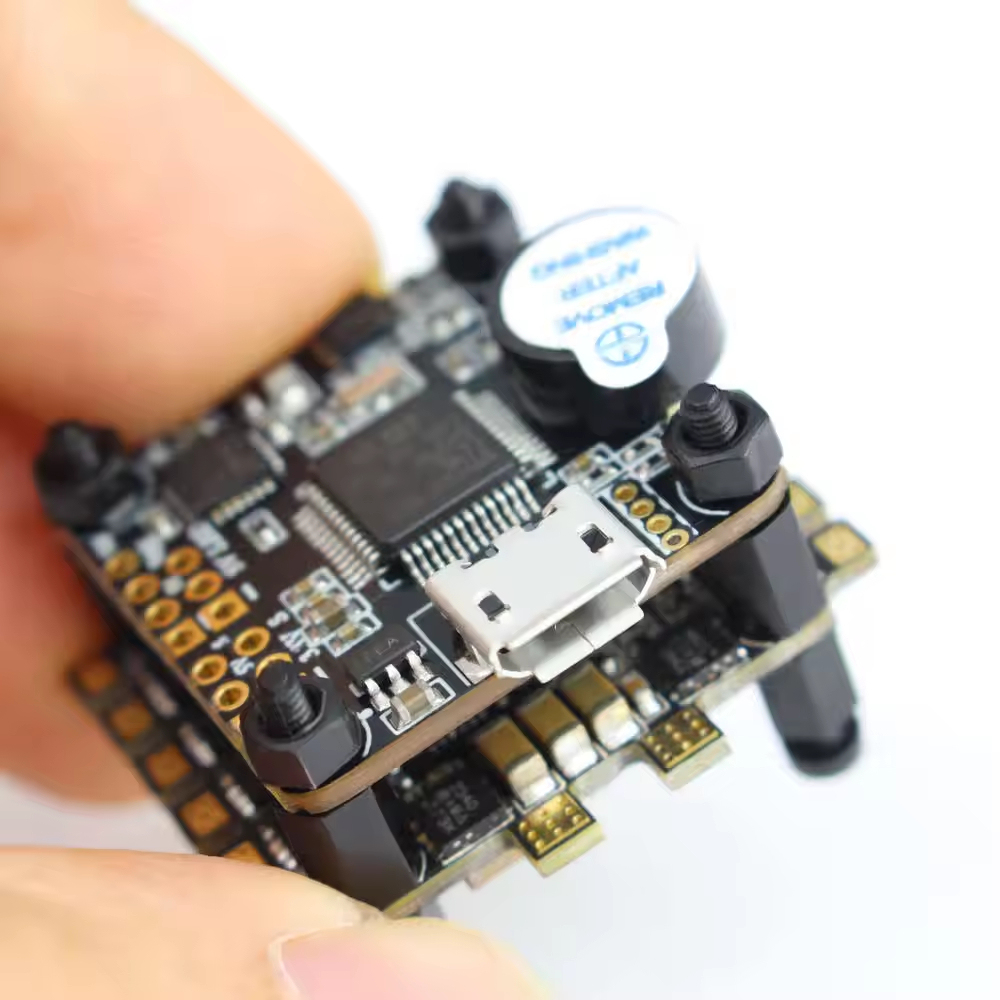

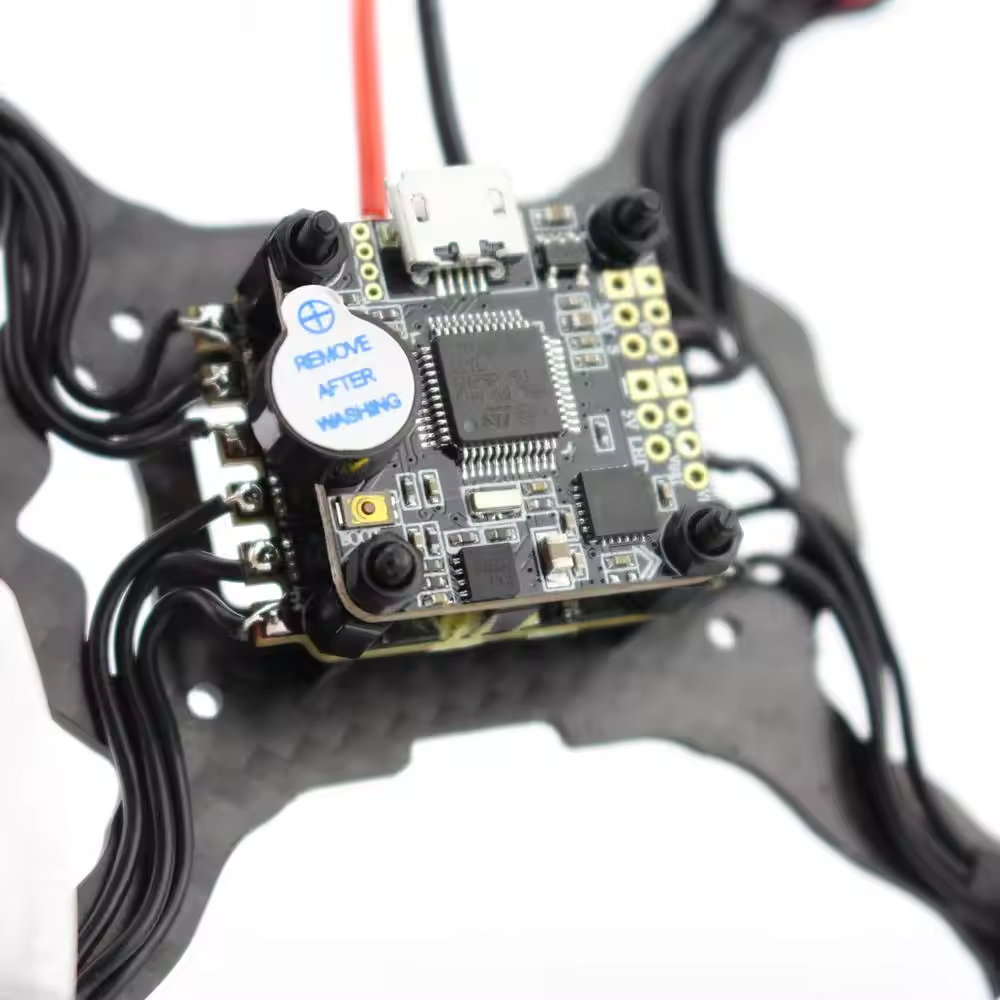

Designed for high-performance Micro FPV racers, the F3 Magnum Mini packs in an F3 processor, Betaflight OSD, and a 12A 4 in1 ESC that can handle up to 4s batteries. The MPU6000 gyro is a proven performer for stable flight and resistance to vibration noise. The FC and ESC neatly stack together with pinned interconnects that make your build easy to assemble and cleaner looking. This tightly pre-assembled package will fit any frame that has 20 x 20mm mounting hole spacing. The F3 Magnum Mini is the fastest way to go from starting a new micro build to FPV Flight!

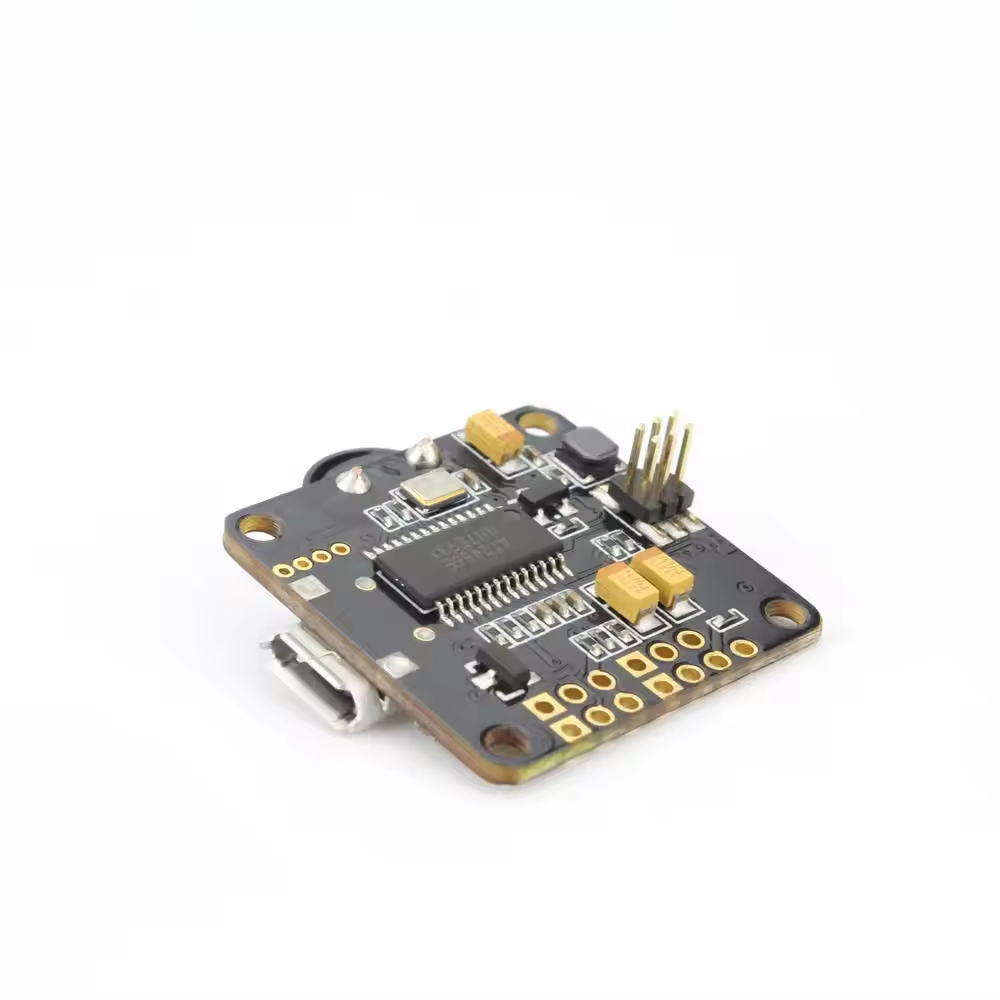

4 in 1 Main Board - F3 FC + Betaflight OSD + 5v Regulator + Buzzer The heart of the flight control systems is a powerful STM32F303 MCU and MPU6000 gyro flashed with Betaflight for proven rocksteady flight stability. The integrated 5V/3A voltage regulator means clean power for all the FC/OSD components and other attached boards such as VTX, RX, and FPV Camera. Betaflight OSD with an easily customizable layout of vital flight information and the ability to change FC flight parameters. On board buzzer for battery level warning or lost model finder functions.

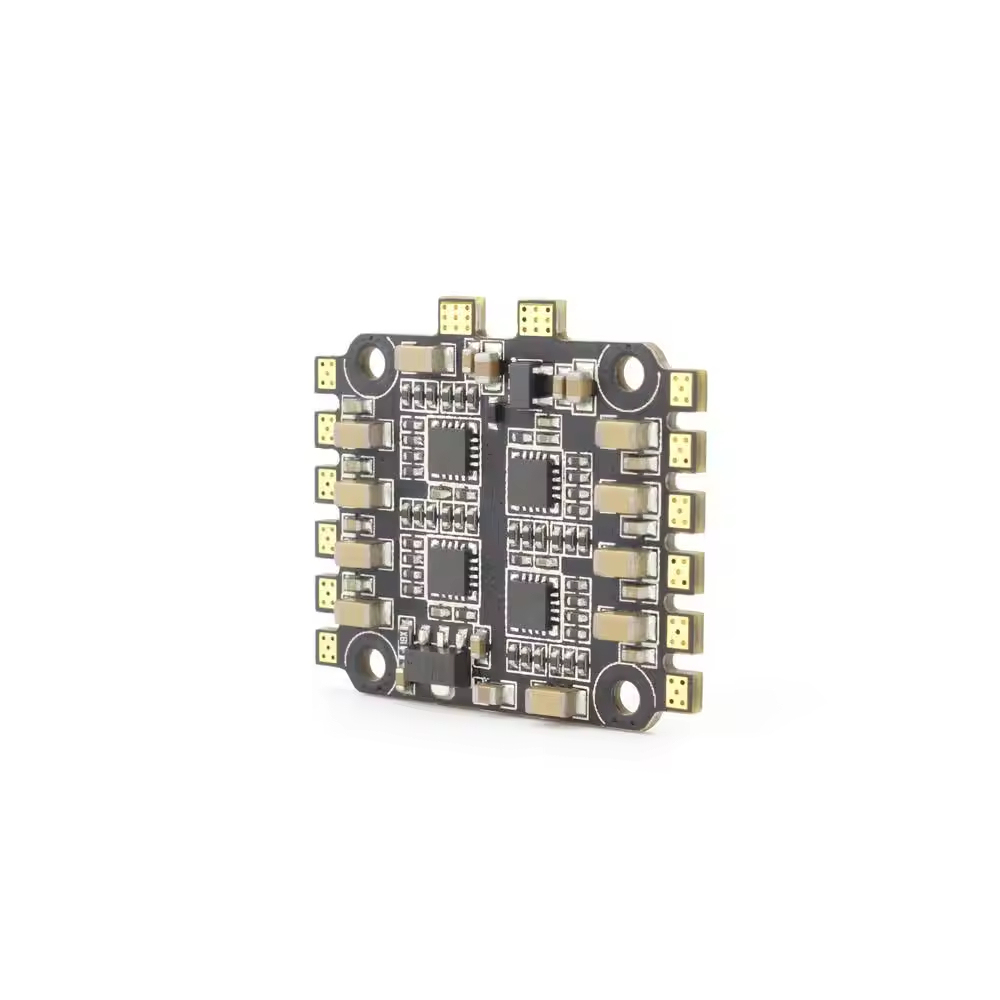

BLheli S 12A - 4 in 1 ESC The ESC system is comprised of 4 x 12A continuous Bullet ESCs using top quality MOSFETs and EFM8BB21F16G MCU. Run your choice of protocol: DSHOT, Multishot, Oneshot 125.
Specifications: 4 in 1 Flight Controller Main Board OMNIBUSF3 Betaflight Target STM32F303 MCU MPU6000 accelerometer/gyro (connected via SPI) On-board Betaflight OSD On-board Buzzer Integrated 5V/3A BEC Dedicated PPM/ Sbus receiver input and 3.3V Pad for DSM Sat RX's Addressable LED pad 24x24mm board with 20mm mounting holes
4 in 1 ESC and Current Sensor Board Continuous current 12A and 15A Burst(within 5 seconds) Supply voltage 2-4S Lipo EFM8BB21F16G 50mhz MCU BLHeli-S firmware supports DSHOT up to 600, MULTISHOT, and ONESHOT125 Top quality MOSFET 3oz high TG PCB board 24x25mm board with 20mm mounting holes
Included in package: 1pc - F3 Magnum Mini FC + OSD Board 1pc - Magnum 12a 4 in 1 ESC Board M2 Mounting hardware Printed Manual
F3 Magnum Mini Selling Points. -Stackable F3 Flight controller + ESC tower system for Micro FPV Racer with 20x20mm hole spacing. -BLheli S 12A 4 in 1 ESC - Oneshot, Multishot & DSHOT - 2-4S battery ready. -Betaflight OSD for easy PID running and display of flight time/voltage. -Built-in Buzzer for lost model finder and low battery warning.
